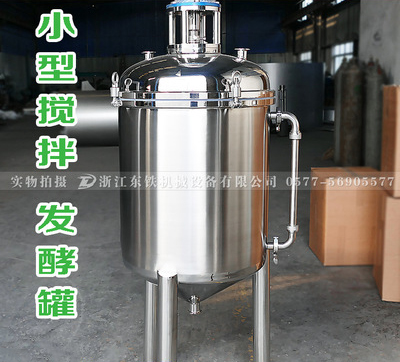

Start - up Mixing Tank Small Fermentor Pure Stainless Steel Material Food Drink

Release date:[2017-03-11]     Click rate:

Mixing tank means that the material is stirring, mixing, reconciling, homogenization, etc., stainless steel mixing tank according to the requirements of the production process design and configuration can be standardized and humane. Mixing tank in the mixing process can be achieved feed control, discharge control, mixing control and other manual automatic control. Mixing tank structure Mixing tank by the mixing tank, stirring tank cover, stirrer, support, transmission, shaft seal device, etc., can also be configured according to process requirements heating device or cooling device.

overview
parameter

Mixing tank means that the material is stirring, mixing, reconciling, homogenization, etc., stainless steel mixing tank according to the requirements of the production process design and configuration can be standardized and humane. Mixing tank in the mixing process can be achieved feed control, discharge control, mixing control and other manual automatic control. Mixing tank structure Mixing tank by the mixing tank, stirring tank cover, stirrer, support, transmission, shaft seal device, etc., can also be configured according to process requirements heating device or cooling device.

Mixing tank, stirring tank cover, stirrer, shaft seal and other materials can be selected according to different requirements of the use of carbon steel or stainless steel and other materials to produce.

Mixing tank and stirring tank cover can be sealed with a flange seal or welding connection. Mixing tank and stirring tank cover can be opened according to process requirements, discharge, observation, temperature measurement, pressure measurement, steam fractionation, safe venting process pipe hole.

The upper part of the stirring tank is equipped with a transmission (motor or reducer), and the agitator in the stirring tank is driven by the drive shaft.

Shaft seal device can be used machine seal or packing, labyrinth seal and other forms (according to user needs to determine).

As the user requirements of different production processes, the mixer can be equipped with pulp, anchor, box, spiral and other forms. If you have any other requirements can contact the factory, another design.

Heating device or cooling device

The unit is usually used depending on whether the material is heated or dried or cooled. In the custom range, the temperature should be below 200 ℃, the use of pressure below 0.1Mpa. The heating method may be based on the production conditions of the unit of use. Heating methods are hot oil and other media circulation and direct electric heating two. Hot oil and other media circulation is the heat transfer oil in the other heating tank to a certain temperature, through the hot oil pump for the transport cycle; direct heating is installed directly on the jacket electric heating tube, so that the heating oil to the required temperature ( Temperature can be adjusted according to the actual situation). Cooling cycle is the use of water inside and outside the jacket cycle, so that the material at a certain temperature does not produce agglomeration or sticky. Can also be based on user requirements to increase the form of coil heating or cooling.
